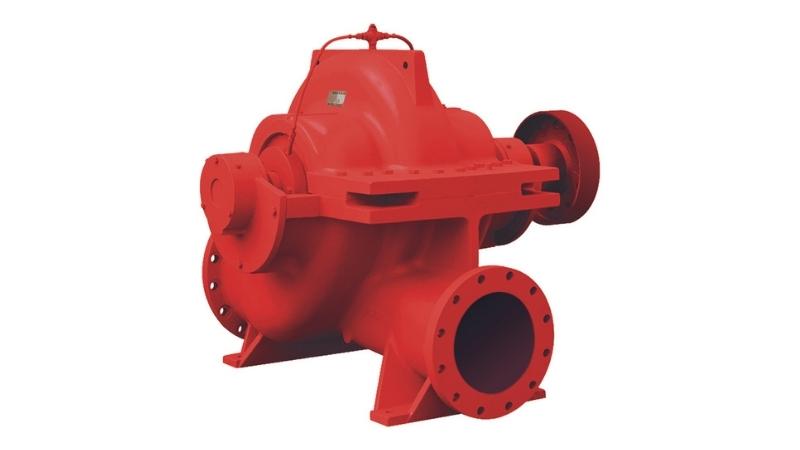

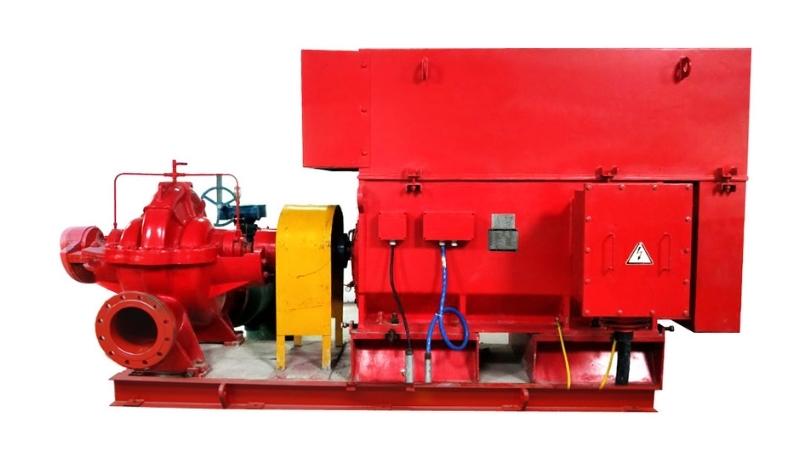

XBD-SLOW Series Horizontal Split Fire-fighting Pump

   XBD's new generation single-stage single-suction and double-stage double-suction fire pump sets can transport liquids that contain no solid particles below 80℃ or have physical and chemical properties similar to clear water, and are mainly used for supplying water to fixed fire fighting systems (fire hydrant fire extinguishing systems, automatic sprinkler fire extinguishing systems and water mist fire extinguishing systems, etc.) in industrial and civil buildings.

   XBD's new generation of fire pump sets are numerous and reasonable, and there are one or more pump types that meet the design requirements in fire places that meet different working conditions, which greatly reduces the difficulty of type selection.

  XBD new generation horizontal single-stage double-suction and double-stage double-suction fire pumps can be used to transport liquids below 80℃ that do not contain solid particles or have physical and chemical properties similar to clear water, as well as slightly corrosive liquids.

  This series of pumps are mainly used for the water supply of fixed fire protection systems (fire hydrant fire extinguishing system, automatic sprinkler fire extinguishing system and water mist fire extinguishing system, etc.) in industrial and civil buildings. The performance parameters of XBD new generation horizontal single-stage double-suction and double-stage double-suction fire pumps meet the requirements of fire fighting and mining, taking into account the industrial and mining requirements of domestic (production) water supply. This product can be used not only for independent fire fighting water supply system, but also for fire fighting, domestic (production) shared water supply system, and also for buildings, municipal, industrial and mining water supply and drainage, boiler water supply and other occasions.

Flow range: 25~325 L/s

Pressure range: 0.3~2.5MPa

Rotating speed: 1490 r/min, 2980 r/min

Voltage: 380V, 6kV, 10kV

Temperature range: the maximum temperature of liquid is ≤80℃, and the ambient temperature is generally ≤40℃;

Transport medium: clean water;

Maximum allowable inlet pressure: 0.4MPa;

Pump inlet and outlet diameters: DN80~DN400mm (flange standard: GB/T 17241.6);                                                                  Structural forms: Single-stage double-suction horizontal middle-opening horizontal type

                               Double-stage double-suction horizontal middle-opening horizontal type.
