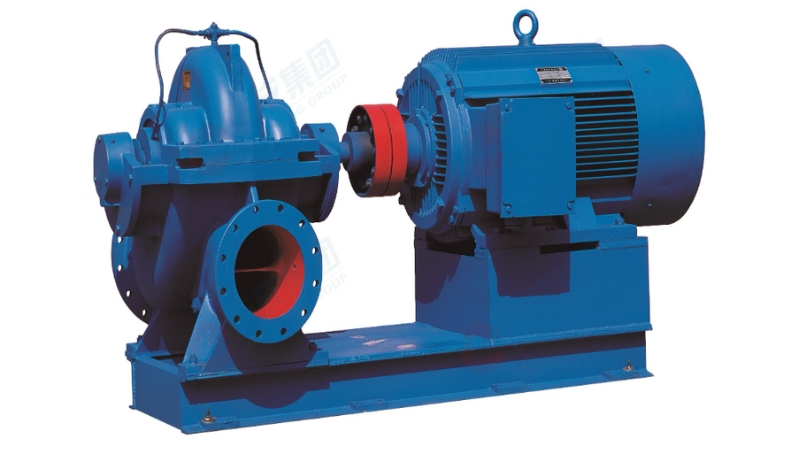

SLO(W) Series Single-stage Double-suction Split Volute Casing Centrifugal Pump
SLO(W) Series Single-stage Double-suction Split Volute Casing Centrifugal Pump
Description
Reviews
Product Overview
SLO(W) series pumps are single-stage double-suction middle-opening volute centrifugal pumps. It is mainly suitable for liquid transportation in waterworks, air conditioning circulating water, building water supply, irrigation, drainage pumping stations, power stations, industrial water supply systems, fire fighting systems, shipbuilding industries and other occasions.
Product Features
1. Compact structure: beautiful appearance, good stability and easy installation.
2. Smooth operation: the optimized double-suction impeller reduces the axial force to the minimum, and has an excellent blade profile with hydraulic performance. After precision casting, the inner surface of the pump casing, the impeller surface and the impeller surface are smooth and have remarkable cavitation resistance and high efficiency.
3. Bearing: SKF or NSK bearing is selected to ensure smooth operation, low noise and long service life.
4. Shaft seal: choose BURGMANN mechanical seal or packing seal. Ensure 8000 hours of operation without leakage.
Performance Range
Pump outlet diameter DN: 80 ~ 800 mm
Flow : ≤ 11600 m³/h
Lifting head: ≤ 200m
Working temperature t:
Solid particles: ≤ 80 mg/L
Working Conditions
1. The inlet pressure of conventional pump is 1.2MPa, and the test pressure is 0.2 MPa＋1.5× working point lift.
2. If the inlet pressure is higher than 0.2 MPa, it shall be indicated in the contract.
Established in 1993, Liancheng is a professional pump manufacturer. The product category covers more than 5,000 series, which are widely used in national pillar industries such as municipal administration, water conservancy, construction, fire protection, electric power, environmental protection, petroleum, chemical industry, mining, and medicine.
Working Conditions
1. The inlet pressure of conventional pump is 1.2MPa, and the test pressure is 0.2 MPa＋1.5× working point lift.
2. If the inlet pressure is higher than 0.2 MPa, it shall be indicated in the contract.
Established in 1993, Liancheng is a professional pump manufacturer. The product category covers more than 5,000 series, which are widely used in national pillar industries such as municipal administration, water conservancy, construction, fire protection, electric power, environmental protection, petroleum, chemical industry, mining, and medicine.
